The design of the fast measurement system of the base station antenna to fill the blank of the antenna radiation performance testing of the mass production line.Greatly improve the efficiency of the current antenna radiation performance testing, and add the circuit parameters test project, the formation of a comprehensive set of fast antenna test solutions.
Characteristic:
- Three axis stereo scanning support;
- Miniaturized ultra wide band dual polarization probe;
- Multi port antenna automatic test (adaptive power dip);
- Far field and near field pattern data output;
- Standing wave isolation integration test;
Test band | Test port number |
---|---|
400MHz~6GHz | 2-12port |
Test parameter | |
Near field pattern test (compatible with AISG control) |
Near field patternComparison test Determination of near field gold machine |
Far field pattern test (compatible with AISG control) |
Far field pattern (need to locate the oscillator) Far field gold machine contrast test / decision |
Circuit parameter test (compatible with AISG control) |
Circuit parameter test Compatible with AISG control |
Software function |
---|
Data export and report generation Provide the results of standard value premise Provide API control and data interface |
Probe design |
Small size broadband dual polarization passive probe Strong anti-interference ability and high cross polarization performance. |
Motion control function |
XYZ three axis stereo scanning support |
Information management platform (optional) |
Test information integration management and control |

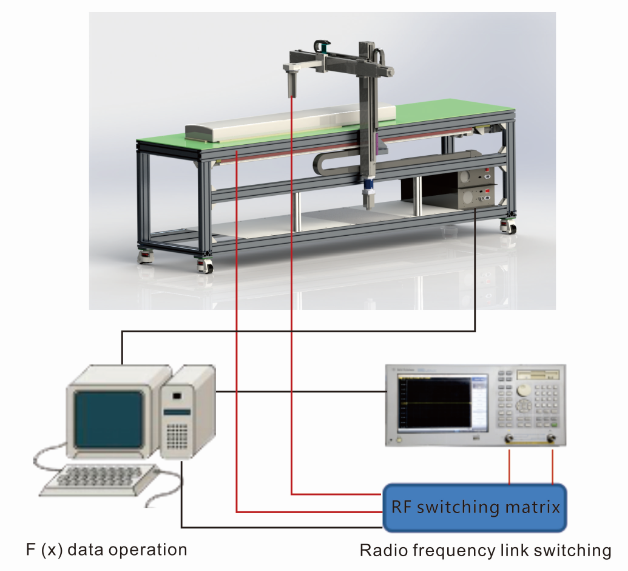

System architecture
Test efficiency
Near field test time | 20s (single band) |
Far field pattern test time (contain near field direction map) |
30s (single band) |
Standing wave isolation test | 20s (single dip) |
Test interface
![fangxiangtu](http://www.xinyirf.com/wp-content/uploads/2016/10/fangxiangtu.png)
![koumian](http://www.xinyirf.com/wp-content/uploads/2016/10/koumian.png)
